Gazelle UltimateT10
Price $5,999
The ebike for long recreational trips
Ultimate T10
The Ultimate T10 is perfect for getting out in the great outdoors. Enjoy hills or flat terrain for as long as you want. This sporty bike has an award-winning frame and high-quality finish.
Frame shape
High-Step, Low-Step
Number of gears
10
Price $5,999
Craftsmanship
With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.
Discover the Ultimate
)
"This e-bike is the best purchase I've made in years! I love the auto-function and have ridden it almost daily since I've gotten it."
Karen

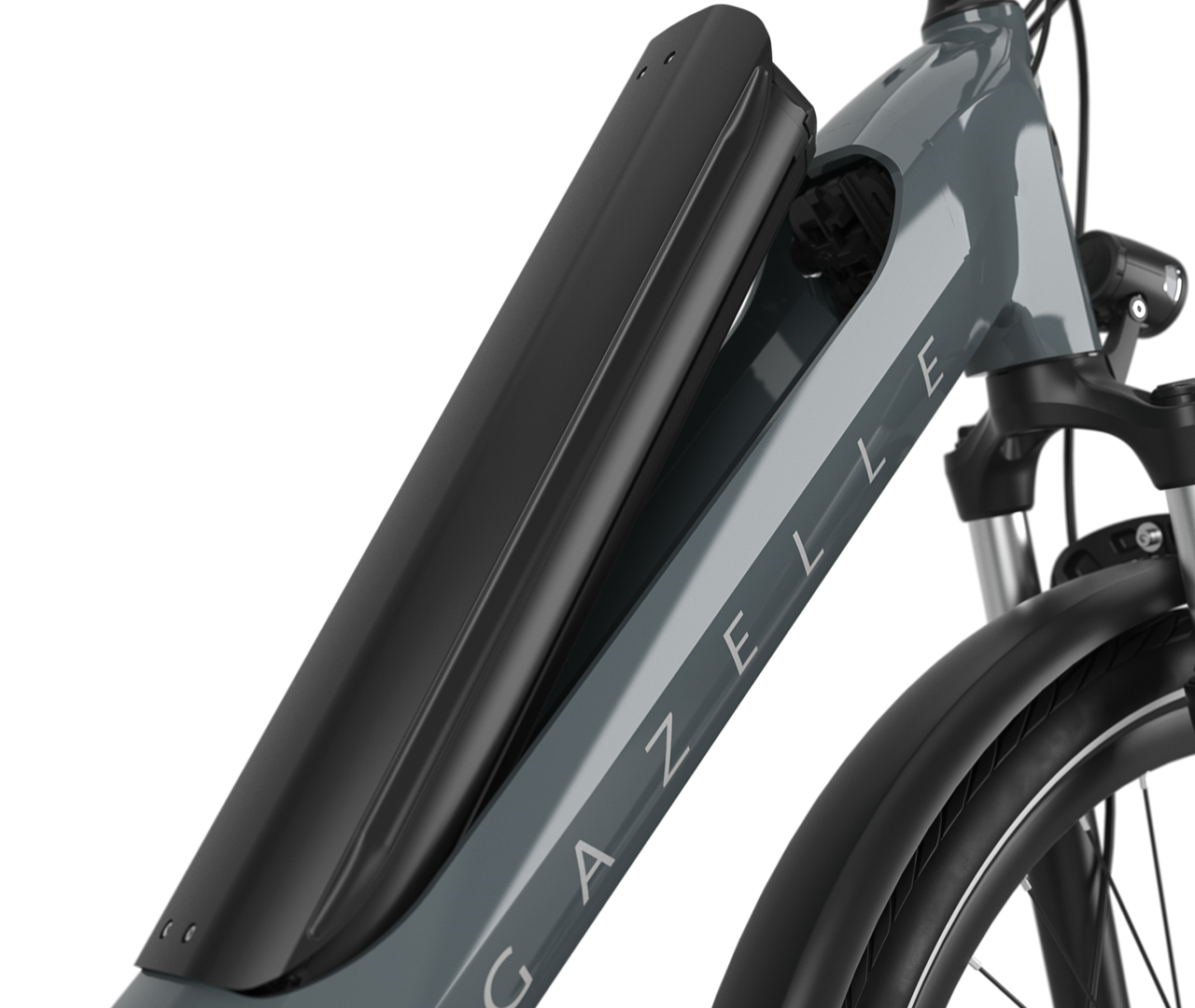

Efficient, integrated power source
Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike using a key that also works on the café lock, so you can recharge the battery anywhere.
The wind is always at your back with a Bosch Performance Line motor
The Bosch Performance Line gives you everything your cyclist's heart desires. Smooth and powerful assistance that will never let you down. With 75 Nm torque you can handle any terrain. Highly recommended for the demanding cyclist.
Battery and range
- Watt-hours625 Wh
- Capacity16,7 Ah
- Battery charging time with 4A4 h 54 m
- Battery positionintergrated in the frame
- Battery brandBosch
- Battery modelIntube
- Battery voltage36V
- Eco100 mi
- Tour60 mi
- Auto45 mi
- Turbo40 mi
Watt-hours
625 Wh
Capacity
16,7 Ah
Battery charging time with 4A
4 h 54 m
Battery position
intergrated in the frame
Battery brand
Bosch
Battery model
Intube
Battery voltage
36V
Eco
100 mi
Tour
60 mi
Auto
45 mi
Turbo
40 mi
)
Specifications
- Color
- Frozen white gloss, thunder grey gloss
- Fork suspension
- Telescope, spiral spring
- Bike weight description
- Excl. battery
- Weight (kg)
- 24.3 kgs
- Weight
- 24.3 excl. battery
- Color
- Frozen white gloss, thunder grey gloss
- Bike Max. Total Weight (kg)
- 130
- Sitting Position
- Active
- Frame description
- Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material
- Aluminum
- Cockpit Cable Integration
- Yes
- Frame shape
- High-Step, Low-Step
- Frame Size CM
- 46, 53, 57
- Fork
- SR Suntour NVX30
- Fork description
- Suntour NVX30
- Fork Material
- Aluminum
- Fork suspension
- Telescope, spiral spring
- Fork lockout
- Yes
Frame
Fork
- Front wheel
- 38
- Rear wheel
- Front rim
- Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
- Rear rim
- Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
- Front hub
- Shimano
- Rear hub
- Shimano Deore
- WheelSize Front
- 28"
- Wheels Tire Front Etrto
- 50-622
- Front tire
- Schwalbe Energizer Plus
- Rear tire
- Schwalbe Energizer Plus
- Wheels Tire Front Description
- Schwalbe Energizer Plus
Wheels
Tires
- Brand shifters
- Shimano
- Front chainwheel
- 38
- Cassette Range
- 11-42
- Gear Type
- Derailleur
- Number of gears
- 10
- Rear derailleur
- Shimano Deore
- Drivetrain
- Chain
- Crankset Model
- Delta
- Crankset description
- Miranda Delta
- Front Brake Type
- Hydraulic disc brake
- Brake sytem code
- S10
- Front Brake Brand
- Shimano
- Primary Rear Brake Model
- BR-MT410
- Front brake
- Shimano BR-MT420, 180 mm
- Rear brake
- Shimano BR-MT410, 160 mm
- Rear Brake Lever
- BLMT420
Gears
Transmission
Brakes
- Handlebar
- Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
- Stem adjustable
- Yes
- pim_productsteerlock
- Yes
- Cockpit Handlebar Grip Brand
- Ergon
- Saddle
- Selle Royal Essenza Plus
Handlebar
Seat
- Front light
- Herrmans MR8
- Front Light Energy Source
- Battery
- Front Light Lux
- 60
- Rear Light Energy Source
- Battery
- Rear light
- Spanninga Commuter Glow
Front light
Rear light
- Motor
- Bosch Smart System Performance Line
- System Model
- Performance Line
- Ebike System Brand
- Bosch Smart System
- Ebike Engine Position
- Mid
- Ebike Max Speed mph
- 20
- Engine Max Torque (Nm)
- 75
- Charger
- Bosch
- Ebike Battery Charger Description
- 4 Ah
- Battery Position
- Intergrated in the frame
- Display
- Bosch Kiox 300
- Display Removeable
- Yes
- Ebike Walk Assist
- Yes
- Display Type
- LCDc
Motor
Battery
Display
- Frame warranty
- 10 year's warranty
- Fork warranty
- 5 year's warranty
- Paint warranty
- 5 year's warranty
- Other parts warranty
- 2 year's warranty
- Battery warranty
- 2 year's warranty
- Motor warranty
- 2 year's warranty
- Display warranty
- 2 year's warranty
Garantie
- Lock
- Axa
- Lock brand
- Axa
- ART classification
- ART**
- Kickstand
- Ursus Mooi
- pim_productchaincase
- Yes
- Rear carrier description
- Aluminum MIK HD system carrier
- Carrier MIK Profile
- Yes
- Rear carrier max load (kg)
- 27
- Rear carrier
- Yes
Lock
Other
Luggage rack
Made by hand, for a superb result every single time.
Take our word for it. Or take a ride.
We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
)
