Gazelle MedeoT9
Gazelle Medeo T9
Price $3,499

Lightweight ebike with a sporty look

Medeo T9

Medeo T9

Are you looking for an elegant ebike with sporty DNA? Then take a look at the Medeo T9 HMB: convenient assistance, nine-speed derailleur, powerful disk brakes and great riding comfort.

Frame shape
High-Step, Low-Step
Number of gears
9
Price $3,499

Craftsmanship

With over 130 years of expertise, we know precisely what we're doing. Creating bicycles that you can rely on. What begins with a design comes together in our factory. Where we work everyday to create the perfect Gazelle for you.

Discover the Medeo

Modern and efficient energy source

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. The Medeo T9 has a 545 Wh battery. The battery is secured with a lock on your rear carrier and is easily removed using your bike key. This is handy, as it allows you to charge the battery anywhere.

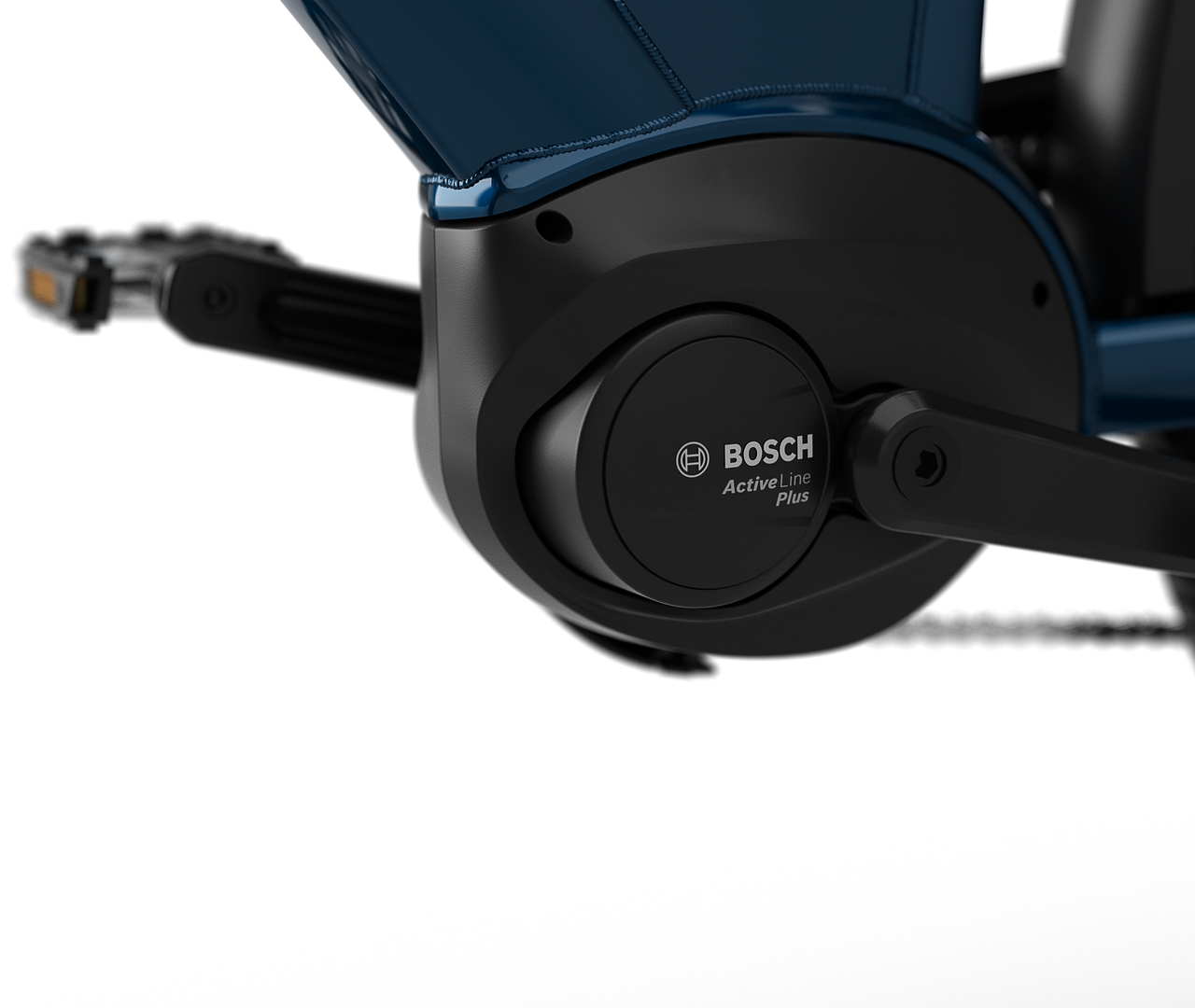

The wind is always at your back with a Bosch Active Line Plus motor

The Bosch Active Line Plus gives natural and silent assistance. With a torque of 50 Nm you can handle practically any terrain. Whether flat or hilly, with this motor you arrive comfortably at your destination.

Battery and range

  • Watt-hours545 Wh
  • Capacity15,1 Ah
  • Battery positionon the frame
  • Battery brandBosch
  • Battery modelOntube
  • Battery voltage36V
  • Eco95 mi
  • Tour60 mi
  • Auto45 mi
  • Turbo40 mi
Watt-hours
545 Wh
Capacity
15,1 Ah
Battery position
on the frame
Battery brand
Bosch
Battery model
Ontube
Battery voltage
36V
Eco
95 mi
Tour
60 mi
Auto
45 mi
Turbo
40 mi
Easy on, easy off Gazelle Gazelle Medeo T9 E-bike low-step champion red

Easy on, easy off

The Medeo T9's updated, reengineered frame is a return to the orginal spirit of this sporty yet accessible ebike. The new, slightly beefier frame offers an easy access low step design with improved stiffness and stability, while lowering the center of gravity for a balanced ride feel.

Hit the road with confidence

We developed the Medeo T9 with accessibility in mind. To enhance this even further with this next generation, we have specced smaller wheels (27.5") and our widest tires to date, 62mm Continental Contact Plus tires. In addition, we have added a new XS frame size offer smaller riders (4'9 - 5'2) a chance to experience the joy of Gazelle.
Hit the road with confidence Gazelle Gazelle Medeo T9 E-bike low-step champion red
Smooth and silent support Gazelle Gazelle Medeo T9 E-bike low-step champion red

Smooth and silent support

Bosch’s updated Smart System Active Line Plus motor offers smooth and silent support with up to 50 Nm of torque for the Medeo T9, and expanded functionality to enhance the ride experience. This includes the popular adaptive Auto Mode, which delivers a customized, optimized ride based on unique rider inputs measured by the ebike system in real time.

Expand your possibilities

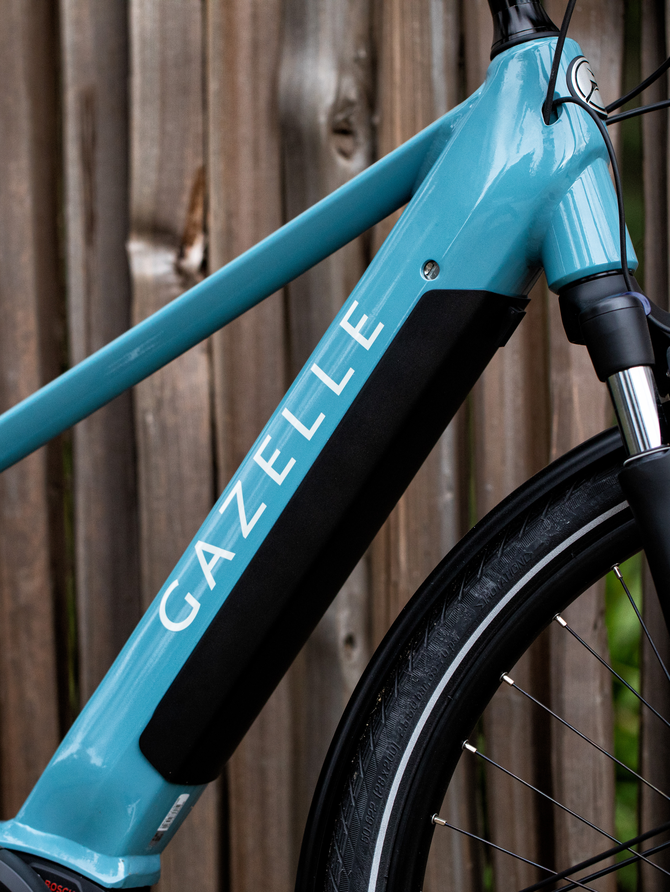

With the new edition Medeo T9, we have moved the battery from the rear rack to the down tube. The on-tube battery placement frees up space on the rear rack, allowing us to spec an MIK HD rack and a larger 545 Wh capacity battery, offering extra range to power bigger and bolder rides.
Expand your possibilities Gazelle Gazelle Medeo T9 E-bike low-step champion red
We make 300,000 bikes a year, assembled by hand.
Our bicycles are consistently checked for quality, from paint job to performance.

Specifications

Color
Champion red gloss, ink blue gloss, thunder grey gloss
Fork suspension
Telescope, spiral spring
Bike weight description
Excl. battery
Weight (kg)
23.1 kgs
Weight
23.1 excl. battery
Color
Champion red gloss, ink blue gloss, thunder grey gloss
Bike Max. Total Weight (kg)
130
Sitting Position
Sportive

Frame

Frame description
Stable lightweight aluminium sloping frame with 70,5° headset angle and 73° saddle tube angle for a sporty posture and precise handling. Cables beautifully integrated into the frame.
Frame material
Aluminum
Cockpit Cable Integration
Yes
Frame shape
High-Step, Low-Step
Frame Size CM
40, 45, 50, 55

Fork

Fork
SR Suntour MOBIE A32 DS
Fork Material
Aluminum
Fork suspension
Telescope, spiral spring
Fork lockout
Yes

Wheels

Front rim
Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Rear rim
Ryde Big Bull, double-walled aluminium for extra strong and efficient cycling performance
Front hub
Shimano
WheelSize Front
27.5"

Tires

Wheels Tire Front Etrto
62-584
Front tire
Continental Contact Plus
Rear tire
Continental Contact Plus

Gears

Brand shifters
Shimano
Cassette Range
11-36
Gear Type
Derailleur
Number of gears
9

Transmission

Rear derailleur
Shimano Alivio M3100
Drivetrain
Chain

Brakes

Front Brake Type
Hydraulic disc brake
Brake sytem code
S9
Front Brake Brand
Shimano
Primary Rear Brake Model
BR-MT200
Front brake
Shimano BR-MT200, 180 mm
Rear brake
Shimano BR-MT200, 160 mm
Rear Brake Lever
BLMT200

Handlebar

Handlebar
Herrmans DD36, plastic wear-resistant handlebar grips for a firm grasp
Stem adjustable
Yes
Cockpit Handlebar Grip Brand
Herrmans

Seat

Saddle
DDK

Front light

Front light
AXA Compactline 35
Front Light Energy Source
Battery
Front Light Lux
35

Rear light

Rear Light Energy Source
Battery
Rear light
AXA Blueline

Motor

Motor
Bosch Smart System Active Line Plus
System Model
Active Line Plus
Ebike System Brand
Bosch Smart System
Ebike Engine Position
Mid
Ebike Max Speed kmh
25
Ebike Max Speed mph
20
Engine Max Torque (Nm)
50

Battery

Charger
Bosch Compact charger,
Ebike Battery Charger Description
2 Ah
Battery Position
On the frame

Display

Display
Bosch Purion 200
Ebike Walk Assist
Yes
Display Type
LCD

Garantie

Frame warranty
10 year's warranty
Fork warranty
5 year's warranty
Paint warranty
5 year's warranty
Other parts warranty
2 year's warranty
Battery warranty
2 year's warranty
Motor warranty
2 year's warranty
Display warranty
2 year's warranty

Lock

ART classification
ART**

Other

Kickstand
Ursus Mooi

Luggage rack

Rear carrier description
Aluminum MIK system carrier
Carrier MIK Profile
Yes
Rear carrier max load (kg)
25
Rear carrier
Yes
Made by hand, for a superb result every single time.

Take our word for it. Or take a ride.

We've done our best to capture the Gazelle experience in words, but there is nothing like the real thing. So why not book a test ride at one of our Gazelle bike stores?
